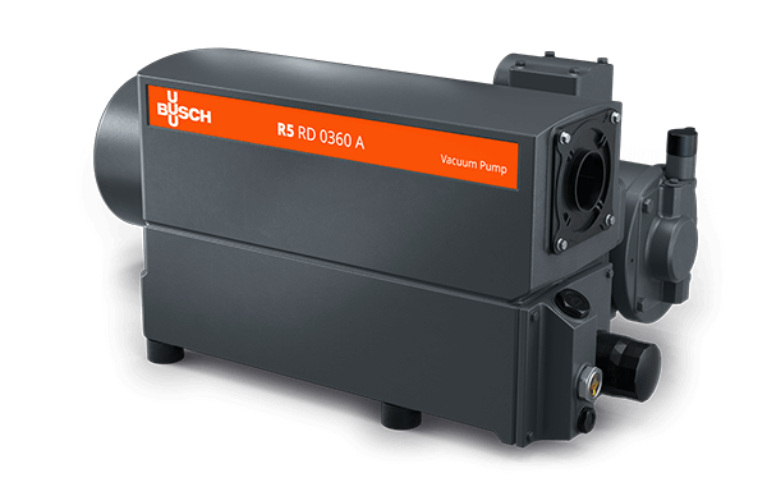

Busch R5 RD 0360 A vacuum pump

New unused

Nominal pumping speed: 300 m³/h
Ultimate pressure (Gas-ballast valve closed): 0.1 hPa (mbar)
Ultimate pressure (Gas-ballast valve open): 0.5 hPa (mbar)
Nominal motor rating: 5.5 kW
Nominal motor speed: 1500 min⁻¹
Power consumption at 100 mbar: 5.1 kW
Power consumption at ultimate pressure: 2.8 kW
Sound pressure level (ISO 2151), KpA = 3 dB: 70 dB(A)
Oil capacity: 7 l
Weight approx.: 190 kg
Dimensions (L x W x H): 990 x 530 x 410 mm
Gas inlet: G 2″

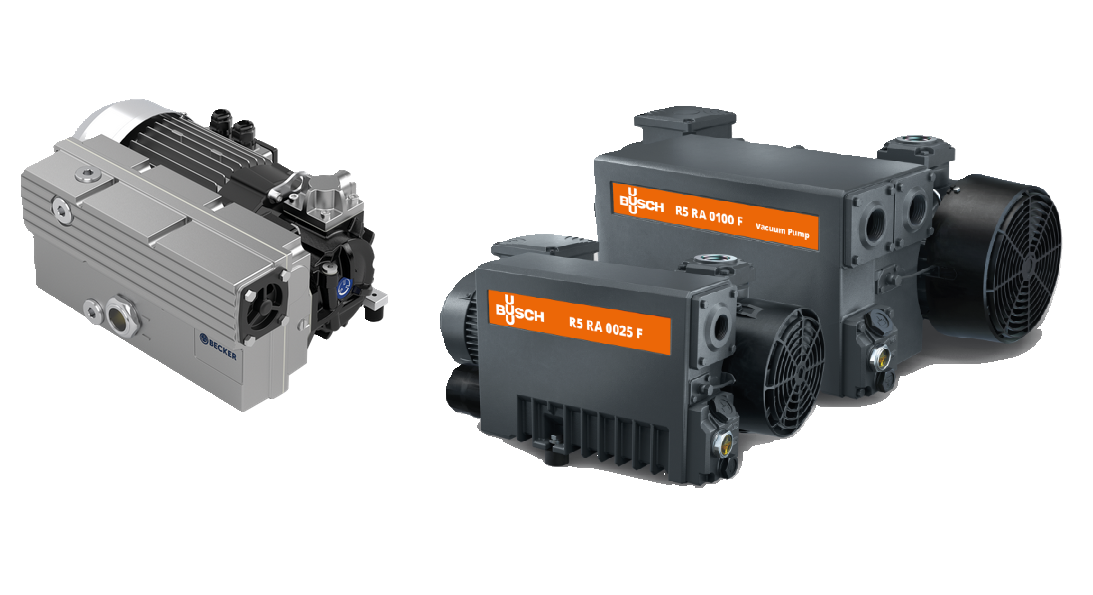

Busch R5 RA0100 F vacuum pump

New unused

Nominal pumping speed : 100 m³/h
Ultimate pressure (Gas-ballast valve closed): 0.1 … 0.5 hPa (mbar)
Ultimate pressure (Gas-ballast valve open): 0.5 … 1.5 hPa (mbar)
Nominal motor rating: 2.7
Nominal motor speed: 1500  min⁻¹
Power consumption at 100 mbar: 1.9
Power consumption at ultimate pressure: 1.2
Sound pressure level (ISO 2151), KpA = 3 dB: 65  dB(A)
Oil capacity: 2.0 l
Weight approx.: 75 kg
Dimensions (L x W x H): 693 x 406 x 288 mm
Gas inlet: G 1¼”
